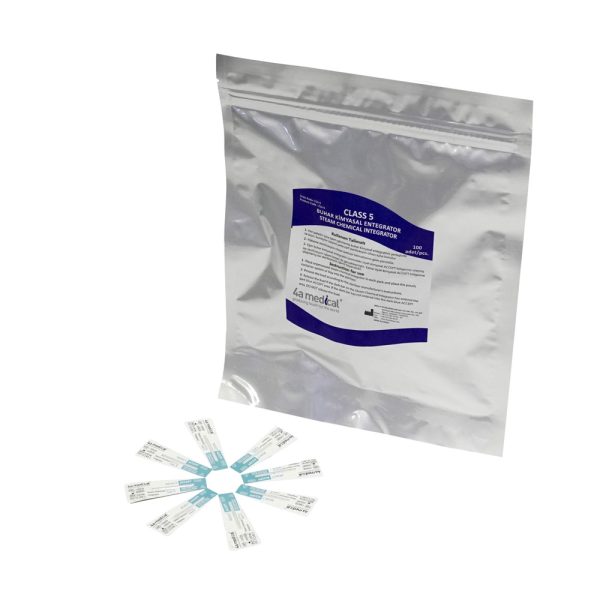

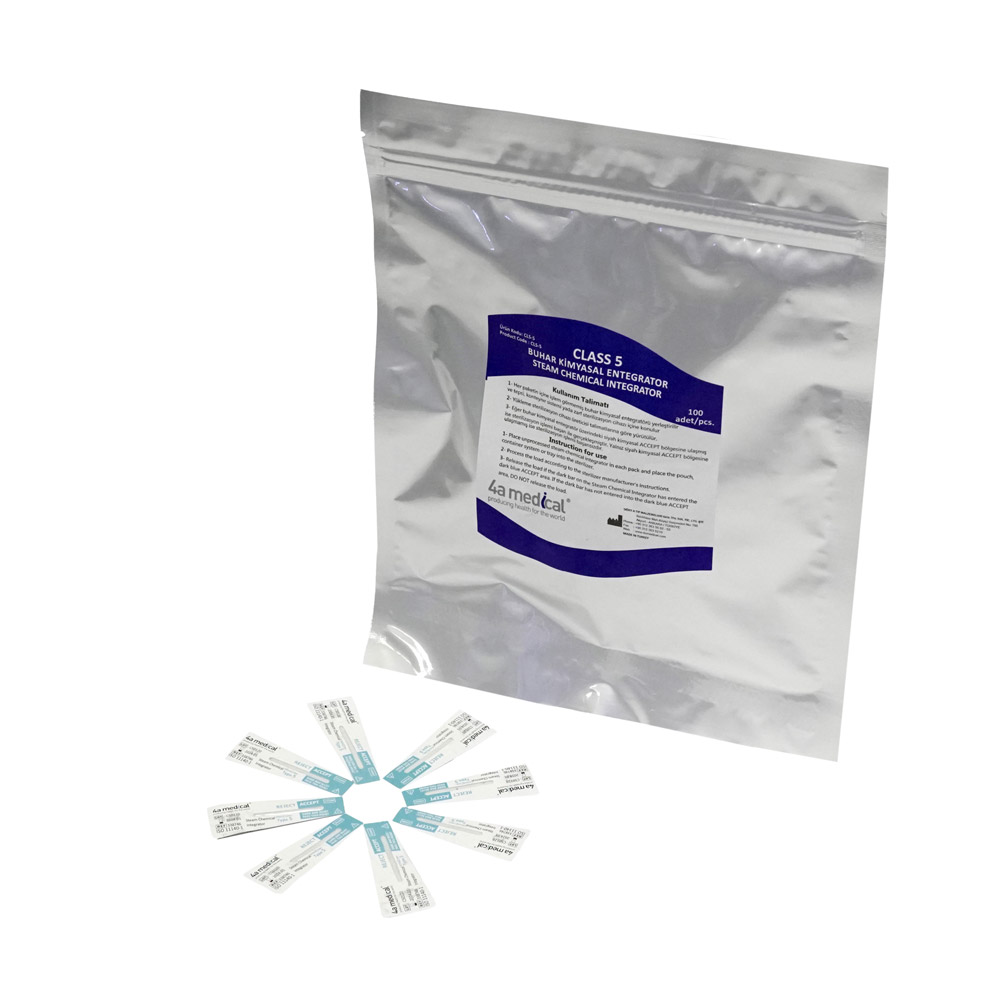

Type 5 Steam Chemical Integrator

In Stock

Type 5 Steam Chemical Integrator

Add your review

Type 5 Chemical Integrators are the indicators which give proximate result to the biological indicator and they operate in direct proportion to biological death. This product that is used in a package during steam sterilization process consists of the chemical mixture which is on the part of the acceptance area if the sterilization is successful and on the part of reject area if the sterilization fails. There is no reference color in integrators, and the results can be interpreted according to the mixture migrating through the window.

Wishlist
<span class="ts-tooltip button-tooltip" data-title="Add to compare">Compare</span>
SKU:Product Code: 4AC5IN

TECHNICAL DATA SHEET

TYPE 5 STEAM CHEMICAL INTEGRATOR

PRODUCT CODE RELATED  STANDARDS

INTENDED USE

:     4AC5INT

:     4A Medical Steam Integrator is classified as Type 5 according to ISO 11140-1 standard.

:     4A Medical Steam Integrator are cycle verification indicators that confirm the presence or absence of specific time and temperature and saturated steam parameters during a cycle. The products allows the end user to identify incorrect packaging, load problems and sterilization failures.

OPERATION CONDITIONS :

4A Medical Steam Integrators are designed operate at steam cycle 121°C and 134ºC operation conditions. When the Integrator is placed in a sterilizer together with the load and sterilization conditions are met the ink is changing from solid into a liquid which is slowly absorbed by a strip over time. If accepted point is passed then sterilization is successful if it doesn’t pass accepted point then sterilization is not successful.

TERILIZATION  RESUTS

PRODUCT SPECIFICATIONS : The indicator is temperature, time and saturated steam concentration sensitive.

STORAGE AND DISPOSAL : The expired products are not used. It’s kept in the places with room temperature

without humidity and sun lights. It shouldn’t be in contact with liquid. Damaged and defective products are not used. Shelf life is 4 years after prodcution date.

PACKAGING:  Packing contains 250 pieces of integrator. There is 20 pack in one cardboard

Product NameQTYSize
Type 5 Steam Chemical Integrator1x250 pcs
